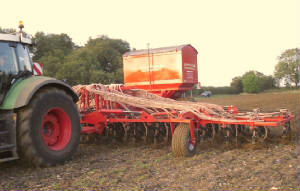

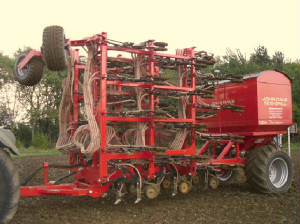

Project undertaken for John Dale Drills to assist in the design of a 12m version of their Eco-Drill, the first double folding machine built. Work included dynamic simulation of the work and transportation modes of the machine, and applying the loads derived from this to FEA of the main chassis components.
